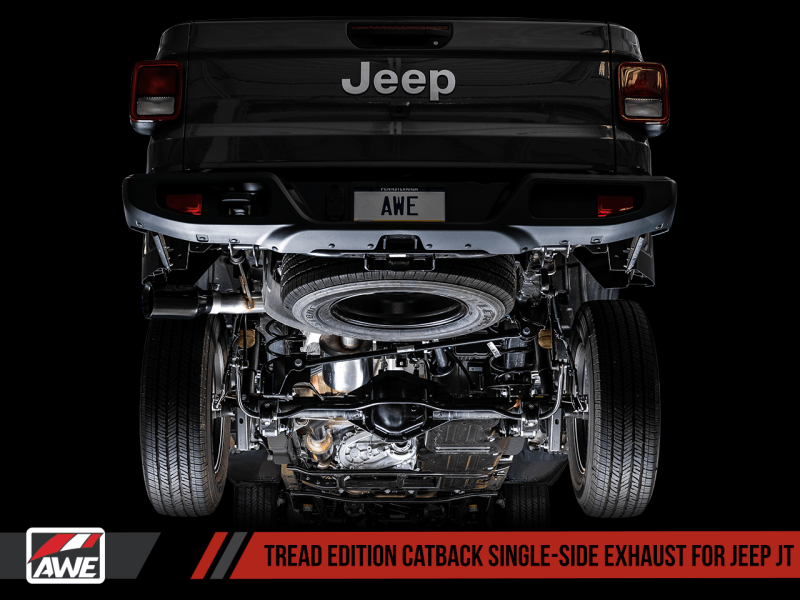

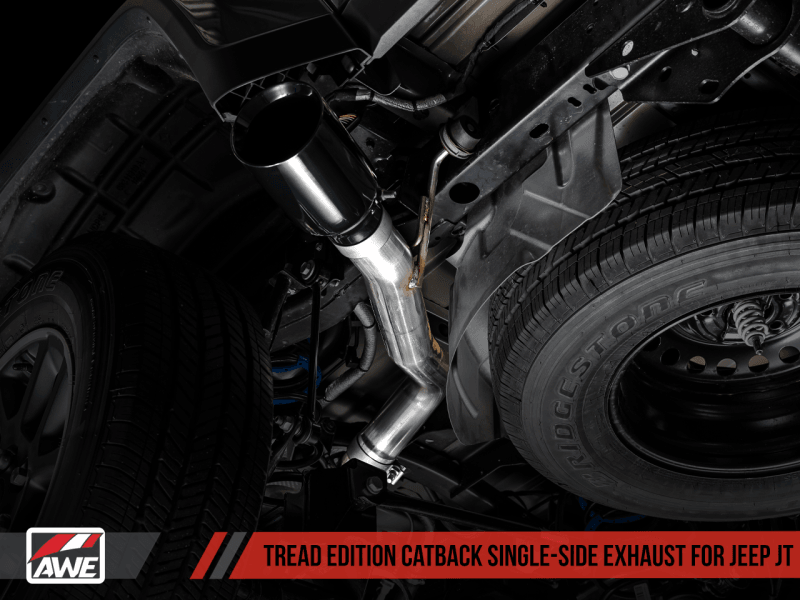

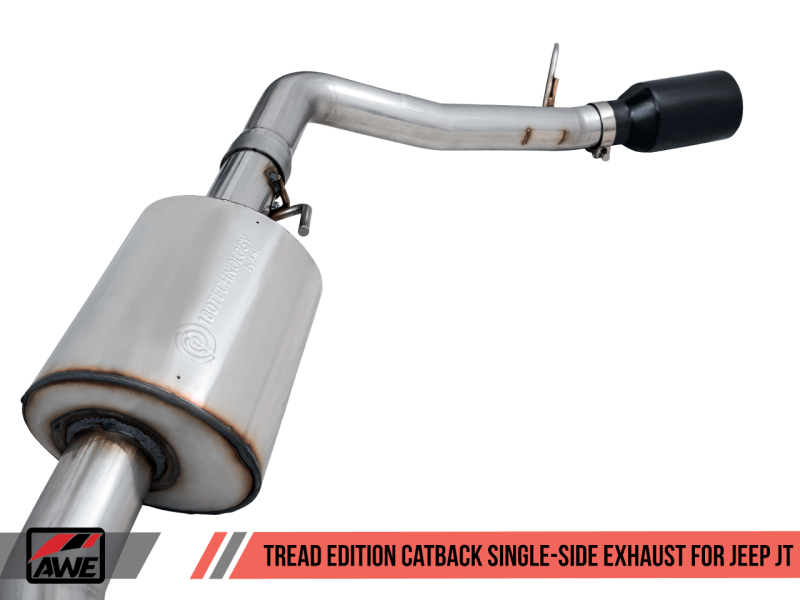

20-23 Jeep Gladiator JT 3.6L Tread Edition Cat-Back Single Side Exhaust - Diamond Black Tips
Tread Edition Exhaust:
The perfect Jeep Gladiator Exhaust does exist, and it’s called AWE’s Tread Edition.
Handcrafted from US-made 3” T304L stainless steel, the Tread Edition is a full, straight-through catback configuration for drivers looking for rugged performance and a drone-free, signature exhaust note without sacrificing daily-drivability.
The Tread Edition features a bespoke resonator in the mid pipe, followed by AWE’s patented, drone-canceling 180 Technology®, right before the rear axle (i.e. where the cabin ends). This combination provides the Gladiator’s 3.6L with a sophisticated, full-bodied soundtrack completely controllable via the throttle. With increased throttle, the Gladiator roars with aggression, but at highway speeds, the cabin is free of any drone, and volume is similar to stock.

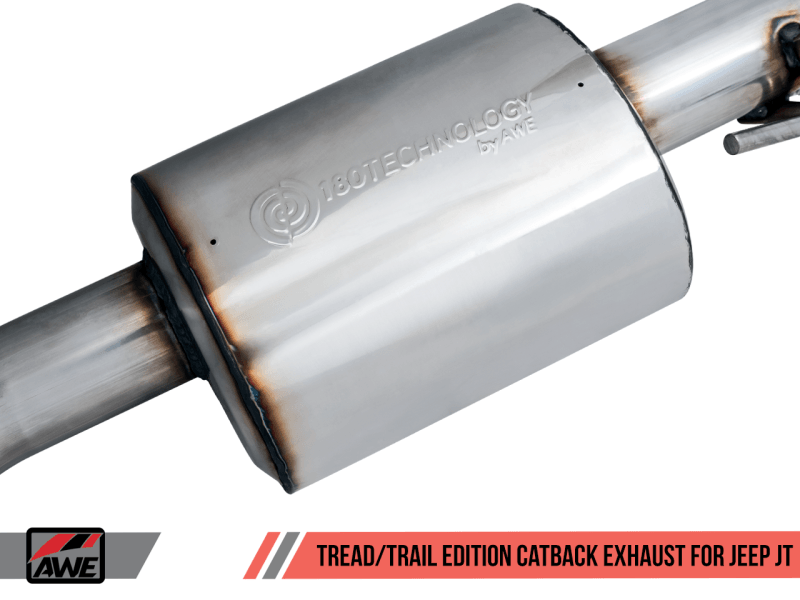

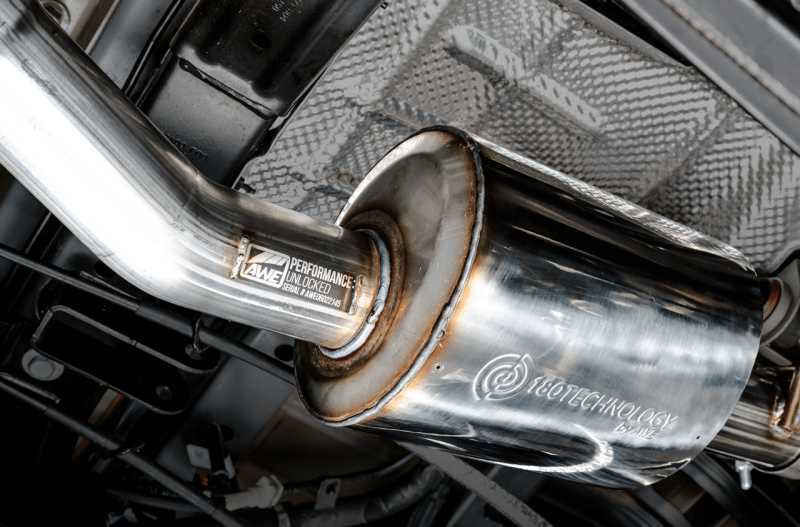

AWE's Pantented 180 Technology®:
As exhaust gases exit the 3.6L engine and flow into an AWE 180 Technology® equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies.
Made in PA, USA:
Engineered, designed, and manufactured in-house at AWE using US-sourced .065”-wall T304L stainless steel to achieve a tone deeper than everyone else.
Installation instructions
Product Details

- Proudly engineered, designed, and manufactured in-house, in the USA
- Features AWE's proprietary, patented drone-canceling solution, 180 Technology®

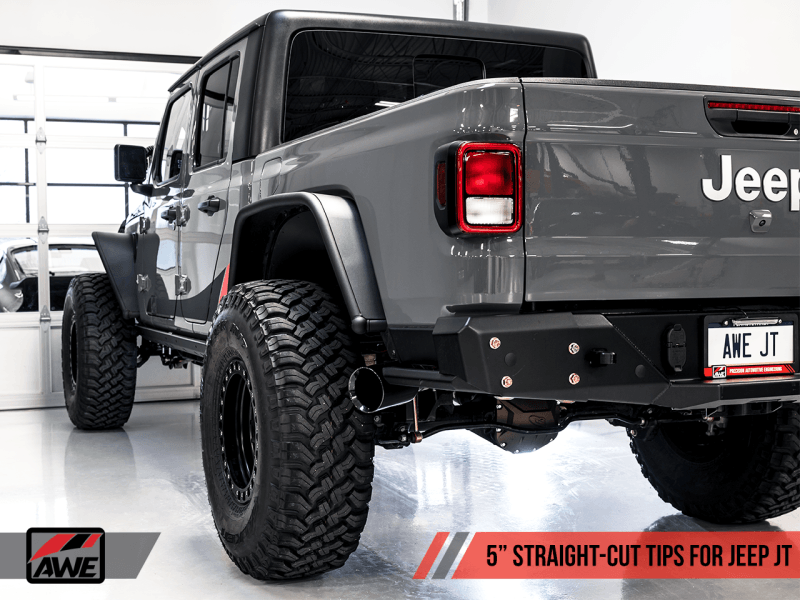

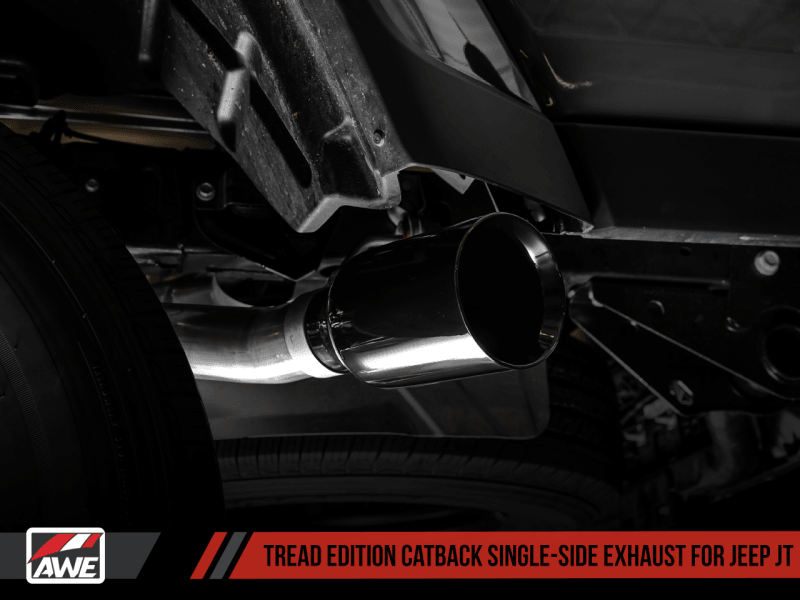

- Tread Edition offered as single or dual outlet with bespoke 5” straight-cut, double-walled tips in diamond black
- Easily convert between Tread and Trail Edition
- Handcrafted from 3” U.S.-made CNC mandrel-bent .065” wall T304L stainless steel
- Dyno-verified max gains of 5 hp and 10 ft-lbs of torque at the wheels
- Direct bolt-on for factory-like simplicity, no cutting required
- Less is more: clean, straight-through design maximizes performance
- Single or dual 5” straight-cut, double-walled tips available in diamond black (Tread Edition)
- Dyno-engineered, trail-proven
- Perfect fitment, guaranteed
- Lifetime warranty on exhaust
Fitment
Year | Make | Model | Sub-Model |
---|---|---|---|
2021 | Jeep | Gladiator | 80th Anniversary |
2020,2022 | Jeep | Gladiator | Altitude |
2021-2023 | Jeep | Gladiator | High Altitude |
2020 | Jeep | Gladiator | Launch Edition |
2020-2023 | Jeep | Gladiator | Mojave |
2020-2023 | Jeep | Gladiator | Overland |
2020-2023 | Jeep | Gladiator | Rubicon |
2020-2023 | Jeep | Gladiator | Sport |
2020-2023 | Jeep | Gladiator | Sport S |
2021-2023 | Jeep | Gladiator | Willys |
2021-2023 | Jeep | Gladiator | Willys Sport |
