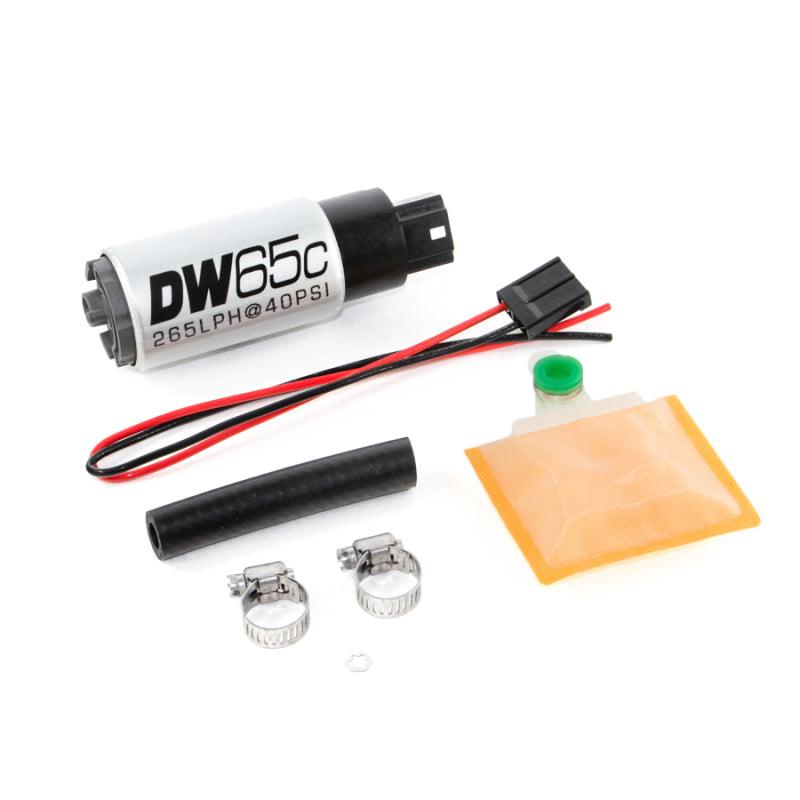

DW65C series, 265lph compact fuel pump without mounting clips w/ universal install kit
        Deatschwerks DW65C series, 265lph compact fuel pump without mounting clips w/ universal install kit. This fuel
        pump has a high torque motor that creates more flow at higher pressures, so you can supply larger fuel injectors
        and make more horsepower, and the application specific fitment makes it easy to install. It's fully compatible
        with ethanol, and thanks to its fuel pump impeller design the single scroll composite turbine type, this pump
        provides quieter operation compared to rotor style pumps.
        Fuel pumps are not a one-size-fits-all type of product. Proper fuel delivery to your engine involves combining
        the right fitment and the right flow. This is why the DW fuel pump line is built to cover 7 different
        dimensional formats each having different fluid connections, electrical connections, diameters, and lengths. DW
        pump formats cover standard fitment in-tank, compact fitment in-tank, specialty fitment in-tank, and 2 different
        universal in-line pumps. Each pump formats is available in up to 4 different flow rates yielding over 20
        different format+flow combinations to ensure you have the right pump for your build.
        DW pioneered fuel injector application specific fitment. That experience has been applied to the DW line of fuel
        pumps. To achieve this feat, DW has built a library of over 100 different OE fuel pump modules from which
        application specific fitment kits can be made. First, the proper format+flow combinations are selected. Then the
        o-rings, electrical connectors, clamps, filters, and spacers are chosen. Next, the pump is installed and bench
        tested in the OE module to ensure proper fitment and performance. Lastly, the entire process is documented and
        published into step-by-step illustrated instructions which can be downloaded from our website and used by the
        customer during installation. Application specific product development is a complex process, but DW has made it
        easy for the end customer all you have to do is choose your year make and model.
        A fuel injected internal combustion engine is a dynamic system. Fuel flow requirements vary greatly by rpm and
        load. However, one law remains universal: forced induction applications require more flow at higher pressures.
        Knowing this fact, DW has engineered their fuel pumps to maximize flow at higher pressures. By designing the
        armature for torque bias, delaying pressure relief activation, and maximizing impeller efficiency, DW has
        created a line of pumps with an extremely flat flow curve. Higher flow at higher pressure delivers the fuel your
        engine demands.
        Today's ethanol-enriched fuels are more corrosive than the fuels of the past. High-octane premium grade pump gas
        can contain up to 15% ethanol and e85 is becoming increasingly popular as an inexpensive readily available race
        fuel. Regardless of what fuel you prefer, DW has specifically engineered their pumps with ethanol in mind.


Features Include:
- Designed to improve fuel delivering system performance
 - In-tank application specific fitment
 - Ethanol compatible
 - External material: electroplated steel
 - Impeller design: single scroll composite turbine for quiet and reliable operation
 - High torque motor
 - Outlet fitting: 5/16" hose clamp
 - PRV activation: 100 psi
 - Connector terminal: spade pos/neg
 - Min voltage input: 6v
 - Max voltage input: 18v
 - All applicable hardware and components are provided for product installation
 - Backed by a 3-year no-fault warranty

Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007-2008 | Ford | F-150 | FX2 |
| 2004-2008 | Ford | F-150 | FX4 |
| 2006-2008 | Ford | F-150 | Harley-Davidson Edition |
| 2005-2008 | Ford | F-150 | King Ranch |
| 2004-2008 | Ford | F-150 | Lariat |
| 2008 | Ford | F-150 | Limited |
| 2004-2008 | Ford | F-150 | STX |
| 2008 | Ford | F-150 | THE 60TH ANNIVERSARY EDITION |
| 2004-2008 | Ford | F-150 | XL |
| 2004-2008 | Ford | F-150 | XLT |
