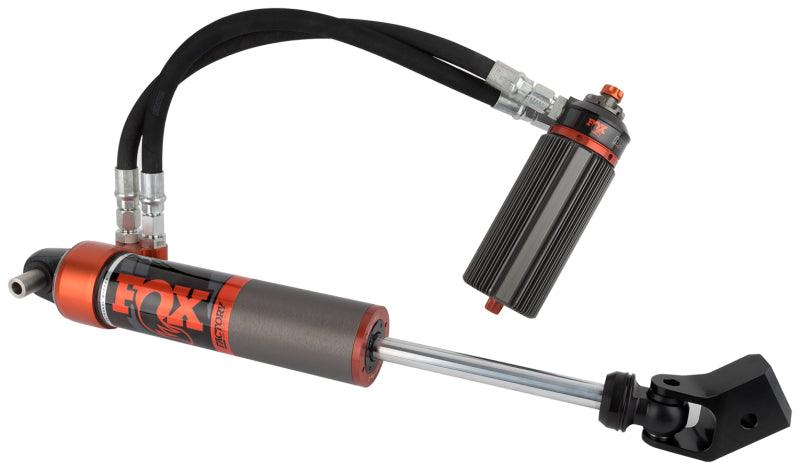

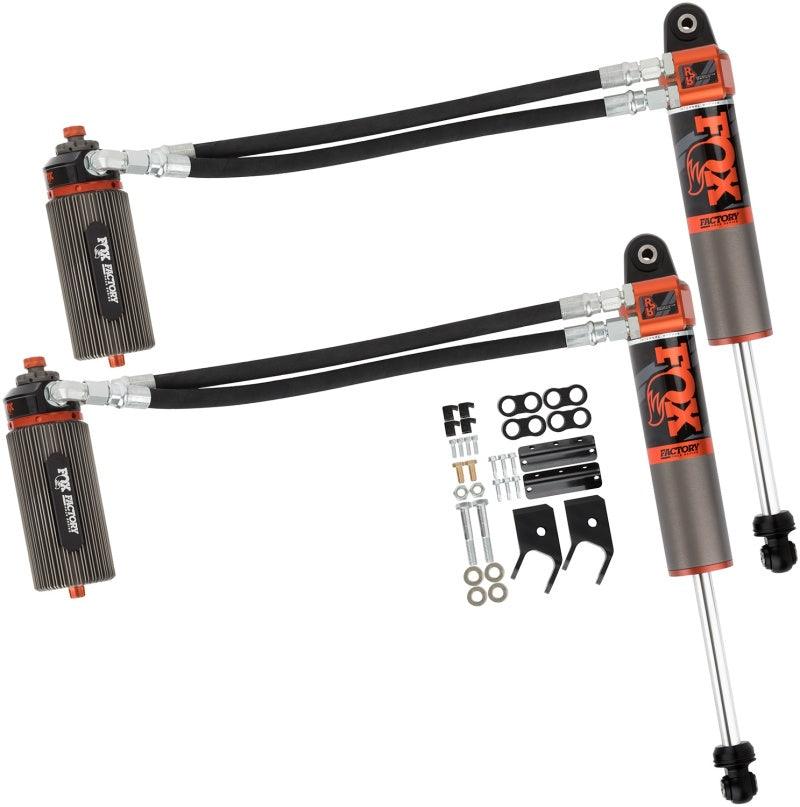

FACTORY RACE SERIES 3.0 INTERNAL BYPASS RESERVOIR SHOCK (PAIR) - ADJUSTABLE
The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping
technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology
contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then
forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush,
predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract
harsh bottom-outs or top-outs that could buck you off the trail.
These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and
race-bred internal valving. They are designed to bolt onto your 2-3" aftermarket suspension lift kit using OEM
shock pivots. Featuring NEW remote Recirculating Reservoir Bridge and hard-anodized, CNC-machined aluminum
remote reservoir with external fins that act as a heat sink for increased heat dissipation to maintain optimal
shock oil temperature for consistent damping. The Factory Race Series 3.0 Internal Bypass shocks utilize the
same components we use in our race-winning Trophy Truck shocks, including stainless steel shock shafts,
PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.
Features Include:
- Fitment: Direct Fit
- Models with 2-3" lift
- Front shock
- 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
- Hard-anodized body plating for a durable finish
- NEW! Aluminum finned remote reservoir with Recirculating Reservoir Bridge dissipates heat fast
- Black-anodized, CNC-machined 6061-T6 billet aluminum components
- 7/8" hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
- JM92 Advanced Suspension Fluid for improved performance at a wide range of temperatures

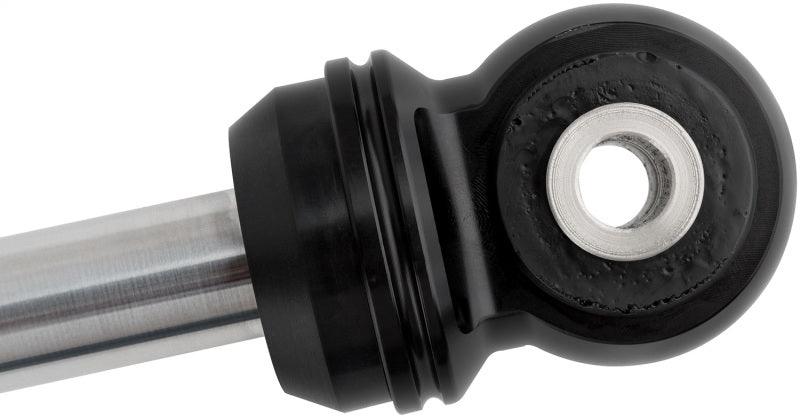

- PTFE-lined, heat-treated, alloy steel spherical bearing keep the shock movement quiet and smooth

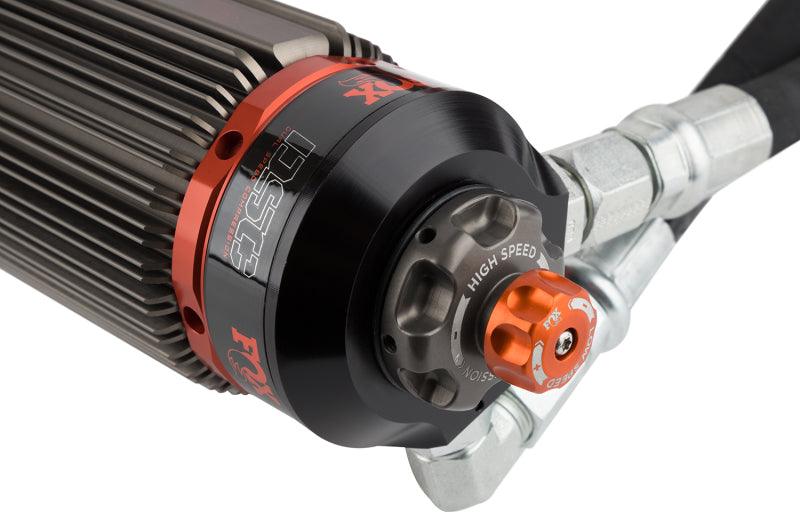

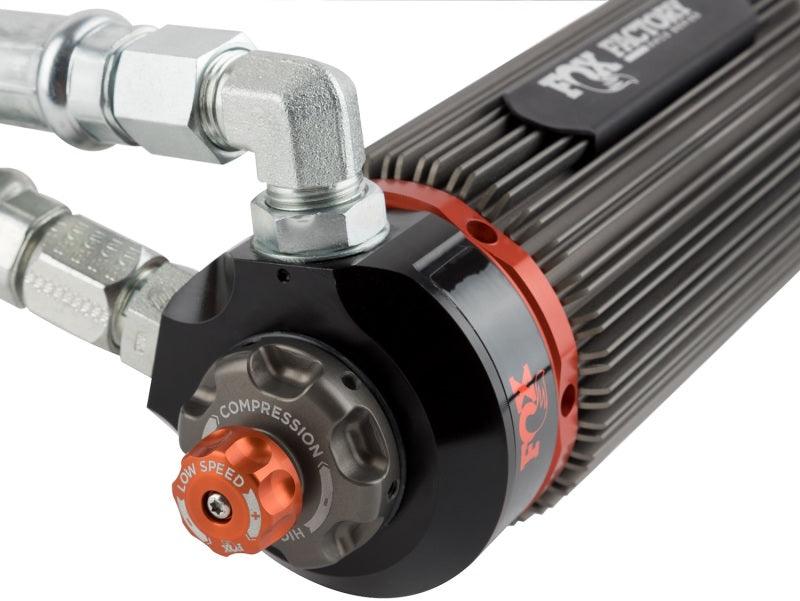

- Dual Speed Compression (DSC) adjusters allow tool-free high and low-speed compression adjustment

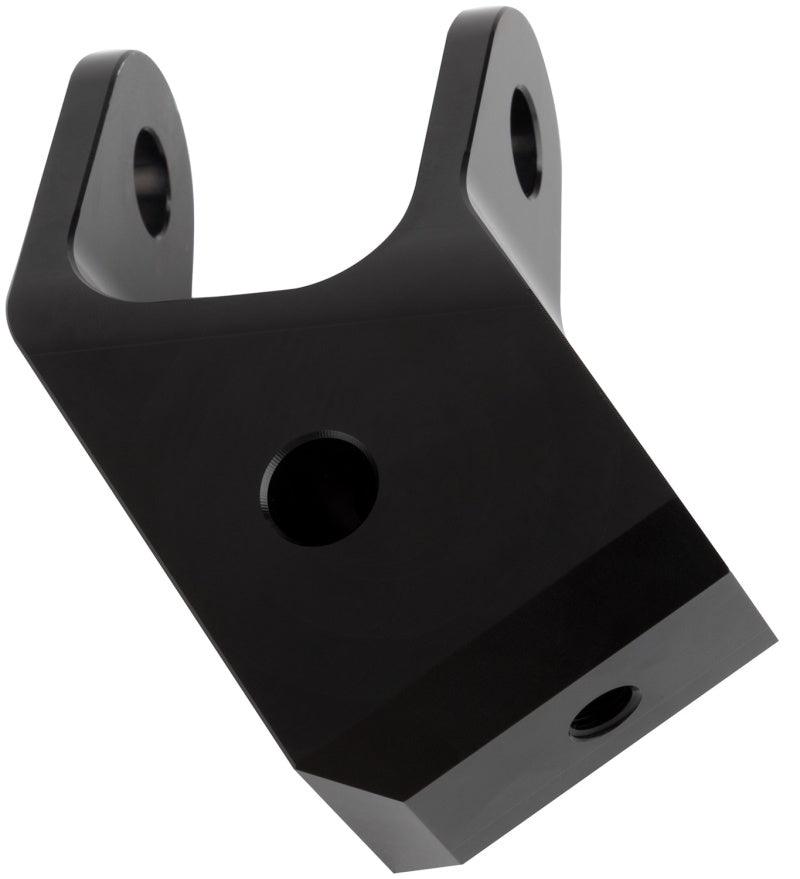

- Machined 7075 aluminum reservoir mounting hardware and offset bottom shock mounts included
- Travel: 8.84 inches
- Compressed length: 17.96 inches
- Extended length: 26.80 inches

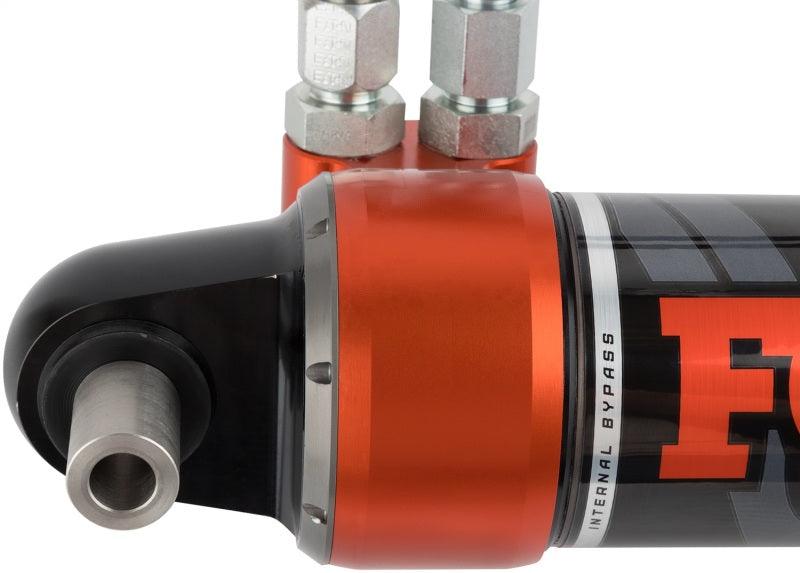

- Top and bottom eyelet mounts
- Includes universial finned reservoir clamp
- Sold in pairs
Fitment
Year | Make | Model | Submodel |
---|---|---|---|
2021 | Jeep | Wrangler | 80th Anniversary |
2021,2023 | Jeep | Wrangler | Freedom |
2021 | Jeep | Wrangler | Islander |
2018-2023 | Jeep | Wrangler | Rubicon |
2018-2023 | Jeep | Wrangler | Sport |
2018-2023 | Jeep | Wrangler | Sport S |
2021 | Jeep | Wrangler | Unlimited 80th Anniversary |
2021,2023 | Jeep | Wrangler | Unlimited Freedom |
2021-2023 | Jeep | Wrangler | Unlimited High Altitude |
2021-2023 | Jeep | Wrangler | Unlimited High Altitude 4xe |
2022-2023 | Jeep | Wrangler | Unlimited High Tide |
2021 | Jeep | Wrangler | Unlimited Islander |
2018-2019 | Jeep | Wrangler | Unlimited Moab |
2018-2023 | Jeep | Wrangler | Unlimited Rubicon |
2021-2023 | Jeep | Wrangler | Unlimited Rubicon 392 |
2021-2023 | Jeep | Wrangler | Unlimited Rubicon 4xe |
2018-2023 | Jeep | Wrangler | Unlimited Sahara |
2021-2023 | Jeep | Wrangler | Unlimited Sahara 4xe |
2021-2023 | Jeep | Wrangler | Unlimited Sahara Altitude |
2018-2023 | Jeep | Wrangler | Unlimited Sport |
2021-2023 | Jeep | Wrangler | Unlimited Sport Altitude |
2018-2023 | Jeep | Wrangler | Unlimited Sport S |
2021-2023 | Jeep | Wrangler | Unlimited Willys |
2023 | Jeep | Wrangler | Unlimited Willys 4xe |
2021-2023 | Jeep | Wrangler | Unlimited Willys Sport |
2021-2023 | Jeep | Wrangler | Willys |
2021-2023 | Jeep | Wrangler | Willys Sport |
Fox Factory Race Series Warranty
For information on Fox Factory Race Series warranty terms and conditions, please click here
